Form factor

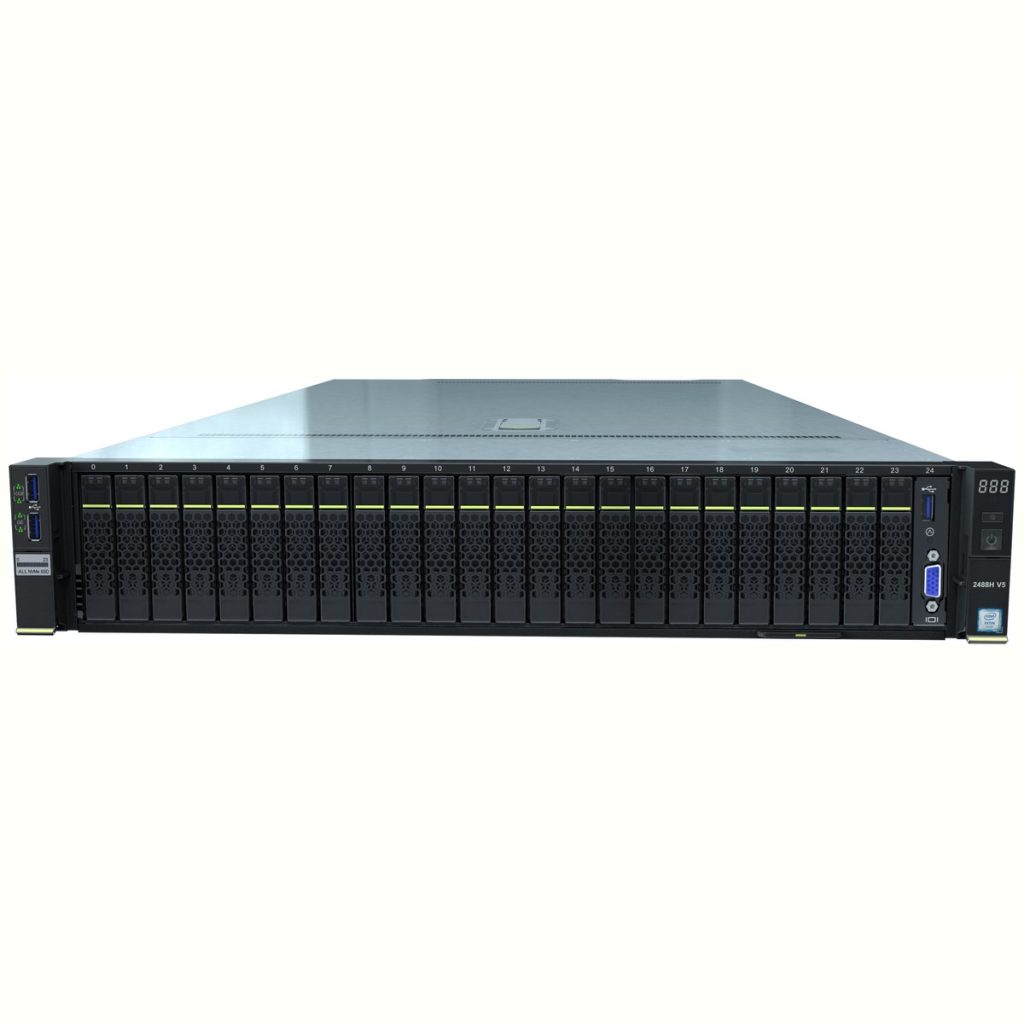

2U rack server

Chipset

Intel^® C622

Processor

Supports two or four processors.

• Intel^® Xeon^® Scalable (Skylake and Cascade Lake) processors

• Built-in memory controller and six memory channels
• Built-in PCIe controller, supporting PCIe 3.0 and 48 lanes per processor
• Three UPI buses between processors, providing up to 10.4GT/s transmission per channel
• Up to 28 cores per processor
• Max. 3.8 GHz
• Min. 1.375 MB L3 cache per core
• Max. 205 W TDP

DIMM

Supports 48 memory modules of the following types:

• Up to 48 DDR4 memory modules
  • Max. 2933 MT/s memory speed
  • RDIMM and LRDIMM support
  • The DDR4 memory modules of different types (RDIMM and LRDIMM) and specifications (capacity, bit width, rank, and height) cannot be used together.
• Up to 24 DCPMMs
  • The DCPMMs must be used with DDR4 memory modules together.
  • The DCPMMs support the AD or MM mode.
  • Max. 2666 MT/s memory speed
  • The DCPMMs of different specifications cannot be used together.
  • For details about the DCPMMs, see the FusionServer DCPMM User Guide.

Storage

Supports a variety of drive configurations. For details, see Drive Configurations.

• Supports two M.2 SSDs.
  • M.2 SSDs are supported only when the server is configured with an Avago SAS3004iMR RAID controller card.
  • The drive letter of the M.2 SSDs managed by the Avago SAS3004iMR RAID controller card can be set to sda by modifying the GRUB parameters only when the RAID controller card is used with a SmartRAID 3152-8i or SmartHBA 2100-8i RAID controller card.

  NOTE:

  • The M.2 SSD module is used only as the boot device when the OS is installed. Small-capacity (32 GB or 64 GB) M.2 SSDs do not support logging due to poor endurance. If a small-capacity M.2 SSD is used as the boot device, a dedicated log drive or log server is required for logging. For example, you can dump VMware logs in either of the following ways:
    • Redirect /scratch. For details, see https://kb.vmware.com/s/article/1033696.
    • Configure syslog. For details, see https://kb.vmware.com/s/article/2003322.

  • The M.2 SSD cannot be used to store data due to poor endurance. In write-intensive applications, the M.2 SSD will wear out in a short time.

    Use enterprise-level high endurance (HE) SSDs or HDDs for data storage.

  • The M.2 SSD is not recommended for write-intensive service software due to poor endurance.
  • Do not use the M.2 SSD as the cache.

• Supports hot swap of SAS/SATA drives.

• Supports hot swap of SAS/SATA/NVMe U.2 drives.

  NOTE:

  The NVMe drives support:

  • Surprise hot swap if the VMD function is enabled and the latest Intel VMD driver is installed.
  • Orderly hot swap if the VMD function is disabled.
• Supports a variety of RAID controller cards. Use the Compatibility Checker to obtain information about the specific RAID controller cards supported.
  • The RAID controller card supports RAID configuration, RAID level migration, and drive roaming.
  • The PCIe RAID controller card occupies one standard PCIe slot.

  For details about the RAID controller card, see V5 Server RAID Controller Card User Guide.

• Supports a SAS RAID controller card (with a 1 GB, 2 GB, or 4 GB cache) and a supercapacitor (providing power-off protection) to improve storage performance and data security.

Network

Supports LOM.

• Supports two 10GE optical ports and two GE electrical ports via the NIC chip integrated on the mainboard.
• The LOM ports support NC-SI and PXE.

I/O expansion

11 PCIe 3.0 slots:

• Two slots for riser cards and nine onboard slots.

  For details, see PCIe Slots and PCIe Slot Description.

• Support PCIe SSD cards to bolster I/O performance for applications such as searching, caching, and download services.
• When IB cards are used to build an IB network, ensure that the IPoIB modes of the IB cards at both ends of the network are the same. For details, contact technical support.

Port

Supports a variety of ports.

• Ports on the front panel:
  • Two USB 2.0 ports
  • One USB 3.0 port
  • One DB15 VGA port

  NOTE:

  For the server that uses 25 x 2.5″ drive configuration, the front panel provides only two USB 2.0 ports.

• Ports on the rear panel:
  • Two USB 3.0 ports
  • One DB15 VGA port
  • One RJ45 serial port
  • One RJ45 system management port
  • Two GE electrical ports
  • Two 10GE optical ports

• Built-in ports:
  • Two USB 3.0 ports

  NOTE:

  In the 8 x 2.5″ or 24 x 2.5″ drive configuration, only one USB3.0 built-in port is provided.

Video card

An SM750 video chip with 32 MB display memory is integrated on the mainboard. The maximum display resolution is 1920 x 1200 at 60 Hz with 16 M colors.

System management

• Supports UEFI.
• Supports iBMC.
• Supports NC-SI.
• Supports integration with third-party management systems.

Security feature

• Power-on password
• Administrator password
• TCM (only in China)/TPM
• Secure boot
• Front bezel (optional)
