| Technical Specifications |
| Parameter |
Description |
| Model |

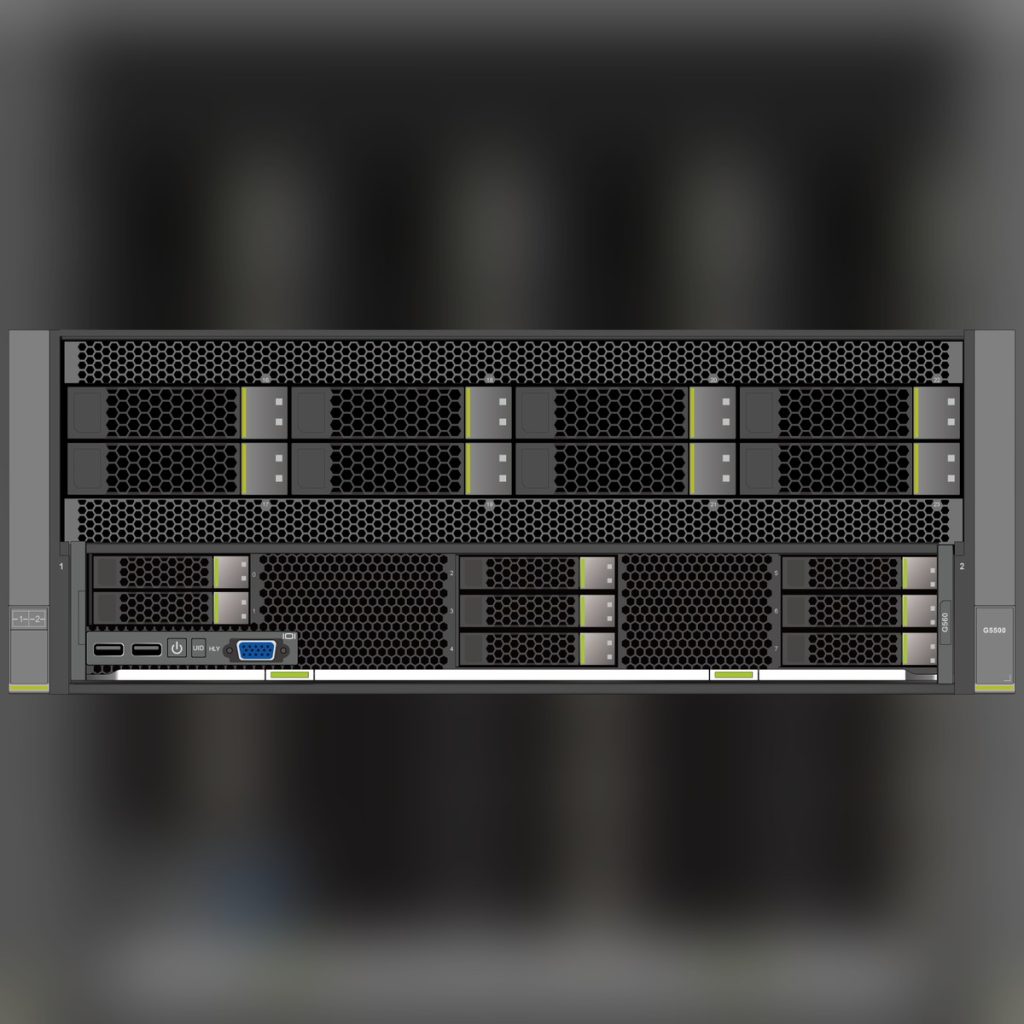

G560 V5 |
| Form Factor |
Full-width heterogeneous computing nodes |
| GPU Accelerator Card |
Up to 8 NVIDIA® Tesla® PCIe or SXM2 V100/P100/P40/P4 |
| Processor |
2 x scalable processors |
| Memory |
Up to 24 x DDR4 DIMMs |
| Local Storage |
PCIe GPU model: 8 x 3.5-inch SSDs or SAS/SATA HDDs, 6 x 2.5-inch NVMe SSDs or SAS/SATA HDDs and 2 x 2.5-inch SSDs or SAS/SATA HDDs |
|
SXM2 GPU model: 8 x 2.5-inch SSDs or SAS/SATA HDDs, 6 x 2.5-inch NVMe SSDs or SAS/SATA HDDs and 2 x 2.5-inch SSDs or SAS/SATA HDDs |
| RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 |
|
A supercapacitor for protecting cache data from power failures. |
| Operating System |
Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Cent OS, and Ubuntu |
| Management |
On-board BMC management module |
|
Supports management features such as IPMI, SOL, KVM over IP, and virtual media |
| Operating Temperature |
5°C–35°C (41°F–95°F) |
